Description

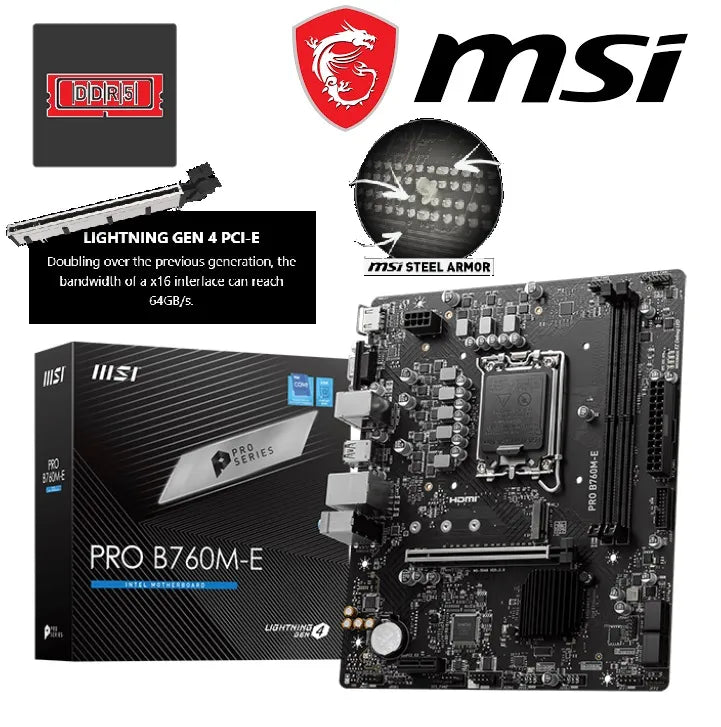

MSI PRO B760M E Motherboard DDR5 Micro ATX

Expert Features

• Support Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors (LGA 1700 socket)
• Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
• Core Boost: Premium layout & digital power design for more cores and better performance
• Memory Boost: Pure data signals for stability and compatibility
• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
• AUDIO BOOST: Studio grade sound quality
• Steel Armor: Protect VGA cards against bending & EMI

Expert Specs

CHIPSET	Intel B760
CPU	Supports Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron® (LGA1700)
MEMORY	2x DDR5 up to 128GB Speeds: 6400+ MHz (OC) down to 4800 JEDEC Supports Intel® XMP 3.0, Dual-Channel, non-ECC
AUDIO	Realtek® ALC897 Codec, 7.1 HD Audio
STORAGE	1x M.2 PCIe 4.0 x4 / SATA + 4x SATA 6Gbps
LAN	Realtek® RTL8111H Gigabit LAN
GRAPHICS	1x HDMI 1.4 (4K@30Hz) 1x VGA
SLOTS	1x PCI-E x16 Gen4, 1x PCI-E x1 Gen3
RAID	Supports RAID 0/1/5/10
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps (Rear) 2x USB 5Gbps (Front)
INTERNAL IO	CPU_FAN, SYS_FAN, JAUD, RGB, JFP, JCI, JCOM, TPM 2.0 header
LED FEATURE	4x EZ Debug LED
BACK PANEL	HDMI™, VGA, USB 3.2 Gen1, LAN, Audio jacks, USB 2.0
OS SUPPORT	Windows® 11 64-bit, Windows® 10 64-bit
FORM FACTOR	mATX, 200mm x 236mm
BOX CONTENT
