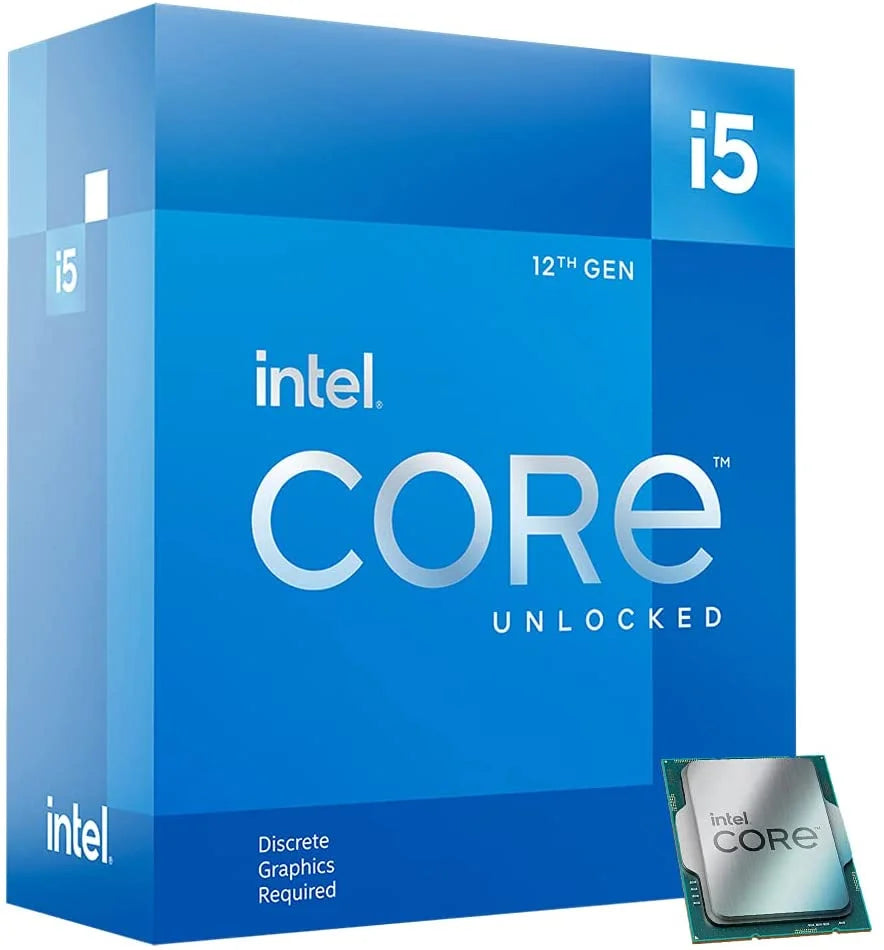

Intel® Core™ I5-12600KF Processor 20M Cache, Up To 4.90 GHz “BOXED”

• • • Product Collection: 12th Generation Intel® Core™ i5 Processors
    • Code Name: Products formerly Alder Lake
    • Vertical Segment: Desktop
    • Processor Number: i5-12600KF
    • Lithography: Intel 7
    • Use Conditions: PC/Client/Tablet



    CPU Specifications:

    • Total Cores: 10
    • # of Performance-cores: 6
    • # of Efficient-cores: 4
    • Total Threads: 16
    • Max Turbo Frequency: 4.90 GHz
    • Performance-core Max Turbo Frequency: 4.90 GHz
    • Efficient-core Max Turbo Frequency: 3.60 GHz
    • Performance-core Base Frequency: 3.70 GHz
    • Efficient-core Base Frequency: 2.80 GHz
    • Cache: 20 MB Intel® Smart Cache
    • Total L2 Cache: 9.5 MB
    • Processor Base Power: 125 W
    • Maximum Turbo Power: 150 W

    Supplemental Information:

    • Marketing Status: Launched
    • Launch Date: Q4’21
    • Embedded Options Available: No

    Memory Specifications:

    • Max Memory Size (dependent on memory type): 128 GB
    • Memory Types: Up to DDR5 4800 MT/s
      Up to DDR4 3200 MT/s
    • Max # of Memory Channels: 2
    • Max Memory Bandwidth: 76.8 GB/s

    Expansion Options:

    • Direct Media Interface (DMI) Revision: 4.0
    • Max # of DMI Lanes: 8
    • Scalability: 1S Only
    • PCI Express Revision: 5.0 and 4.0
    • PCI Express Configurations: Up to 1×16+4, 2×8+4
    • Max # of PCI Express Lanes: 20

    Package Specifications:

    • Sockets Supported: FCLGA1700
    • Max CPU Configuration: 1
    • Thermal Solution Specification: PCG 2020A
    • T_JUNCTION: 100°C
    • Package Size: 45.0 mm x 37.5 mm

    Advanced Technologies:

    • Intel® Gaussian & Neural Accelerator: 3.0
    • Intel® Thread Director: Yes
    • Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
    • Intel® Optane™ Memory Supported: Yes
    • Intel® Speed Shift Technology: Yes
    • Intel® Turbo Boost Max Technology 3.0: No
    • Intel® Turbo Boost Technology^: 2.0
    • Intel® Hyper-Threading Technology: Yes
    • Intel® 64: Yes
    • Instruction Set: 64-bit
    • Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
    • Idle States: Yes
    • Enhanced Intel SpeedStep® Technology: Yes
    • Thermal Monitoring Technologies: Yes
    • Intel® Volume Management Device (VMD): Yes

    Security & Reliability:

    • Intel® Standard Manageability (ISM): Yes
    • Intel® Control-Flow Enforcement Technology: Yes
    • Intel® AES New Instructions: Yes
    • Secure Key: Yes
    • Intel® OS Guard: Yes
    • Execute Disable Bit: Yes
    • Intel® Boot Guard: Yes
    • Mode-based Execute Control (MBEC): Yes
    • Intel® Virtualization Technology (VT-x): Yes
    • Intel® Virtualization Technology for Directed I/O (VT-d): Yes
    • Intel® VT-x with Extended Page Tables (EPT): Yes

LINK:Intel® Core™ i5-12600KF Processor (20M Cache, up to 4.90 GHz) …
