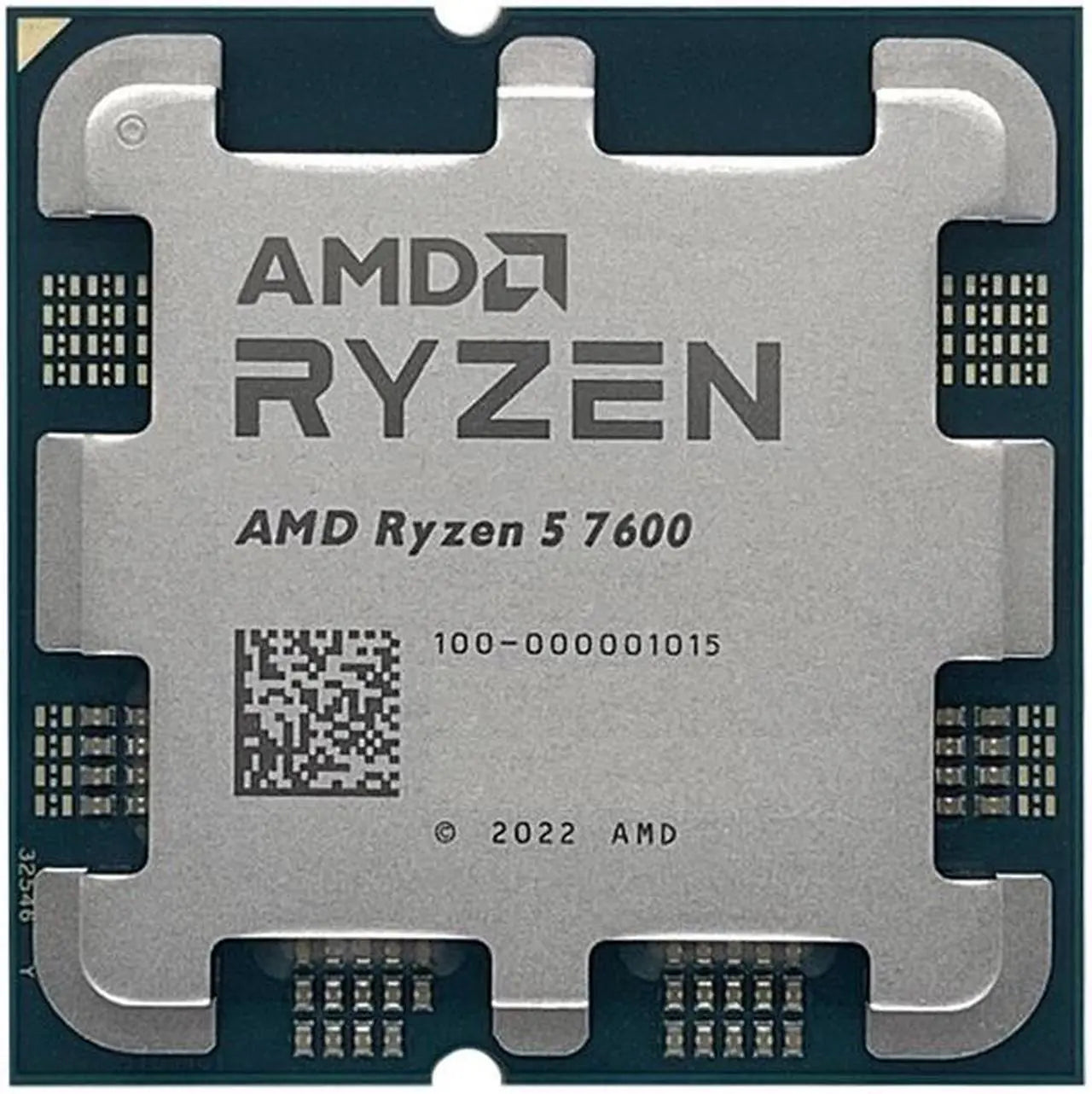

AMD Ryzen™ 5 7600 Tray Desktop Processor With 6 Zen 4 Cores, 12 Threads, 5.1GHz Boost, Radeon Graphics, DDR5 Support, PCIe® 5.0, AM5 Socket – TRAY | 1 YEAR WARRANTY

AMD Ryzen™ 5 7600 Tray Desktop Processor With 6 Zen 4 Cores, 12 Threads, 5.1GHz Boost, Radeon Graphics, DDR5 Support, PCIe® 5.0, AM5 Socket – TRAY | 1 YEAR WARRANTY

$205.00 USD
$205.00 USD
Sale Sold out

Expert Features

  • 6 High-Performance Zen 4 CPU Cores with Simultaneous Multithreading (SMT)
  • 12 Threads for Superior Multitasking and Responsiveness
  • Boost Clock Speeds Up to 5.1 GHz for Enhanced Performance
  • Advanced 5nm FinFET Processor Core Technology by TSMC
  • AMD Radeon™ Integrated Graphics with 2 GPU Cores at 2200 MHz
  • Supports DDR5 Memory up to 128 GB with ECC (on supported motherboards)
  • PCI Express® 5.0 Support for Future-Ready Expansion
  • Unlocked for Overclocking with AMD Ryzen™ Master Utility
  • Precision Boost 2 & Precision Boost Overdrive for Smart Performance Gains
  • Native Support for USB 3.2 Gen 2 (10Gbps) and USB Type-C® with DisplayPort™ Alt Mode
  • Designed for Enthusiast Desktop Users Seeking Power and Efficiency
  • Compatible with AM5 Socket and Chipsets: A620, X670(E), B650(E), X870(E), B840, B850
  • Fully Supported by Windows 10/11, RHEL, and Ubuntu 64-Bit Editions
  • Excellent Thermal Performance with Max Temp of 95°C
  • Includes AMD Wraith Stealth Cooler for Quiet and Efficient Cooling
  • Supports NVMe Boot and RAID Configurations (RAID 0, 1, 10)

Expert Specs

Specification Details
Model AMD Ryzen™ 5 7600 (Tray)
CPU Cores / Threads 6 Cores / 12 Threads
Base Clock / Max Boost 3.8 GHz / Up to 5.1 GHz
Architecture Zen 4
Socket Type AM5
L1 / L2 / L3 Cache 384 KB / 6 MB / 32 MB
Default TDP 65W
Unlocked for Overclocking Yes
Integrated Graphics AMD Radeon™ Graphics (2 Cores @ 2200 MHz)
Memory Support DDR5 up to 128GB (ECC Supported, UDIMM)
Memory Channels Dual Channel
Max Memory Speeds DDR5-5200 (2x1R/2x2R), DDR5-3600 (4x1R/4x2R)
PCIe Version / Lanes PCIe 5.0 / 28 Total (24 Usable)
Supported Technologies AMD EXPO™, Precision Boost 2, Ryzen™ Master, Curve Optimizer
Thermal Solution (PIB) AMD Wraith Stealth
Max Operating Temperature 95°C
USB Support USB 3.2 Gen 2 (x4), USB 2.0 (x1), USB Type-C® DP Alt Mode
NVMe RAID Support Boot, RAID0, RAID1, RAID10
Die Size (CPU/I/O) 71mm² (CCD) / 122mm² (IOD)
Manufacturing Process 5nm (CPU Cores), 6nm (I/O Die)
OS Compatibility Windows 11/10 (64-Bit), RHEL, Ubuntu (64-Bit)
Product ID (Tray) 100-000001015
